BlueStick Control [Phone]

Features BlueStick Control [Phone]

Control your robot via bluetooth* Easy to use with Robo-circle 3S or any robot which support with BlueStick - Serial Port Profile (SPP) Bluetooth Module.

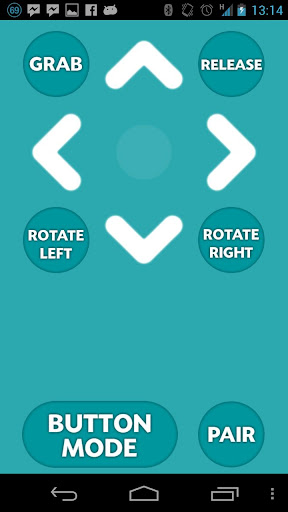

Check Product at BlueStick - http://goo.gl/gKdSGRobo-CIRCLE 3S - http://goo.gl/Sj6aJRobo-Creator - http://goo.gl/b7jfsPOP-BOT XT Standard - http://goo.gl/aLMu7For Robo-CIRCLE3S download this code for i-Box III LogoBlocks to use with this applicationhttp://goo.gl/s0GeBFor POP-XT download this code for Arduino to use with this applicationhttp://goo.gl/6KcNXDownload this application source code fromhttp://goo.gl/2qr7VBluestick Control will help your to control your robot via bluetooth connection.So you can use android device to control robot.We use to control Robo-Circle and you can applied for any robot as you want.In use of this application, user must be connected android device to robot via bluetooth then controlling your robot by press direction button in this apllication in button mode, if you want to use tilt mode, just touch at "Button Mode".The application will change to tile mode and that text will change to "Tilt Mode".

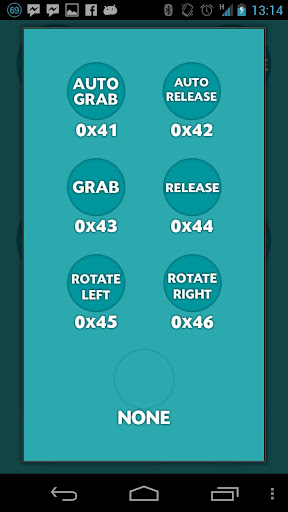

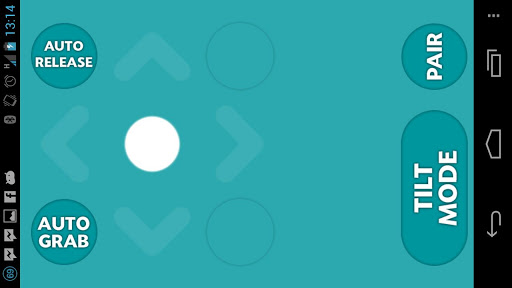

In tilt mode user can tilt your device to control your robot.How to use • Turn on your robot and this application • Press "PAIR" and scan bluetooth on your robot and select it • Waiting for connection • You can control your robot nowIf you want to changed command button • Press menu button on your device then command button will enlarge • Select a button you want to change • Select command button you want • Press menu button again or back button to complete the command button settingThis application use bluetooth connection in Serial Port Profile (SPP).Send hex code to robot as follows : 0x30 = Stop0x38 = Up0x32 = Down0x34 = Left0x36 = Right0x41 = Auto Grab0x42 = Auto Release 0x43 = Grab0x44 = Release0x45 = Rotate Left0x46 = Rotate RightYour robot will have bluetooth connection, and programmed with bluetooth connection code.
